Integrate BloodHound with Falcon for IT

Learn how to install and configure the CrowdStrike Falcon for IT integration for BloodHound Enterprise.

The BloodHound Enterprise CrowdStrike Falcon Foundry Application is a native, serverless integration that automatically collects sessions, local groups, user rights assignment (LSA), and registry key data from CrowdStrike Falcon agents installed on endpoint hosts. The application then sends that data to your BloodHound Enterprise tenant.

This guide shows you how to install the Foundry application, configure the BloodHound Enterprise connection, set up the required queries, and confirm that telemetry reaches Falcon Next-Gen SIEM.

Use this integration to:

• Install the app from CrowdStrike Marketplace and configure the BloodHound Enterprise connection
• Scope Falcon for IT (FFIT) query collection to specific Falcon host groups
• Route endpoint telemetry into Falcon Next-Gen SIEM for ingestion into BloodHound Enterprise

After configuration is complete, the application handles the following actions automatically:

Automated behavior	Description
Provision and schedule FFIT queries	Deploys the required query set and runs it on the configured schedule for the selected Falcon host groups
Route collected data to LogScale	Sends the collected endpoint telemetry into Falcon Next-Gen SIEM (LogScale) for processing
Run serverless ingestion	Uses Foundry Functions to fetch, transform, and ingest data into BloodHound Enterprise
Track host reporting state	Uses a Daily Status Table in Foundry Collections to track which hosts reported during the current cycle
Retry incomplete collection	Retries and reconciles incomplete runs to improve host coverage

Prerequisites

Before you begin, ensure that you have the following:

Requirement	Details
CrowdStrike Falcon access	A CrowdStrike Falcon account with permission to manage FFIT live asset queries, install Foundry apps, execute Fusion SOAR workflows, and access Next-Gen SIEM Event Search
Windows device	At least one Windows device with the CrowdStrike Falcon sensor installed and visible in the Falcon host management console
Host grouping	Add the target Windows devices to an existing or newly created Host Group. This group defines the scope of RTR script execution.
Group ID	Locate and save your Host Group ID. You need this parameter during Managed Application configuration.
BloodHound Enterprise access	A BloodHound Enterprise tenant URL and a BloodHound Enterprise non-personal API key/ID pair with the Auditor role

Install the application

Install the CrowdStrike Foundry application and configure credentials for BloodHound Enterprise.

1. Install the Foundry application

   1. Log in to CrowdStrike Falcon with an account that has permission to install Foundry applications.

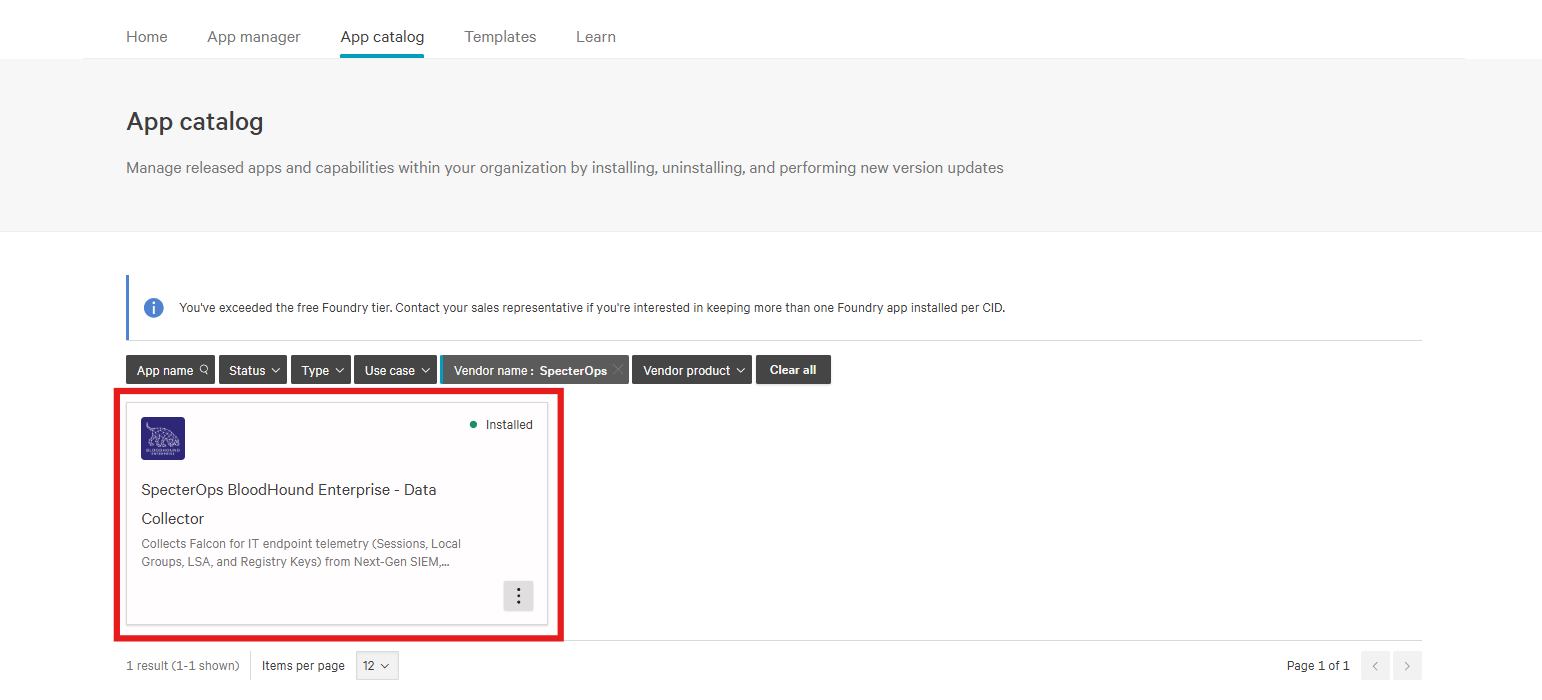

   2. Go to Foundry > App catalog.



   3. Select the SpecterOps BloodHound Enterprise - Data Collector application.

   4. Click Install Now.

   5. After installation completes, click Open App.

2. Enter BloodHound Enterprise connection details

   Configure the connection values that the Foundry application uses to validate credentials and upload data to BloodHound Enterprise.

   Field	Description
   BloodHound Enterprise Domain	The URL of your BloodHound Enterprise tenant
   Token ID	The API token ID used to authenticate requests
   Token Key	The API token key used to sign and authorize requests

   This integration supports a maximum of one BloodHound Enterprise instance.

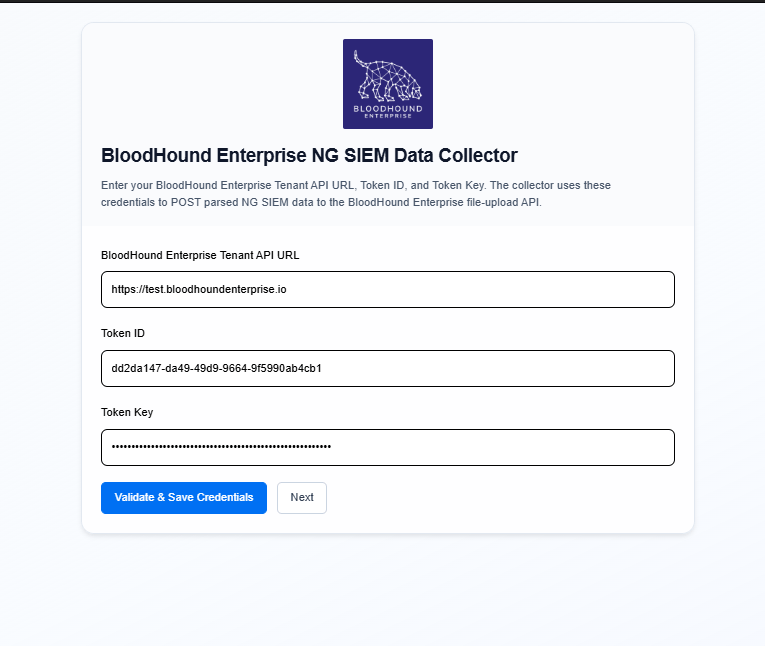

3. Validate and save the credentials

   1. Click Validate & Save Credentials.

      The application stores the validated BloodHound Enterprise API credentials in the Foundry Secret Store.

   2. Confirm that validation succeeds before you continue.

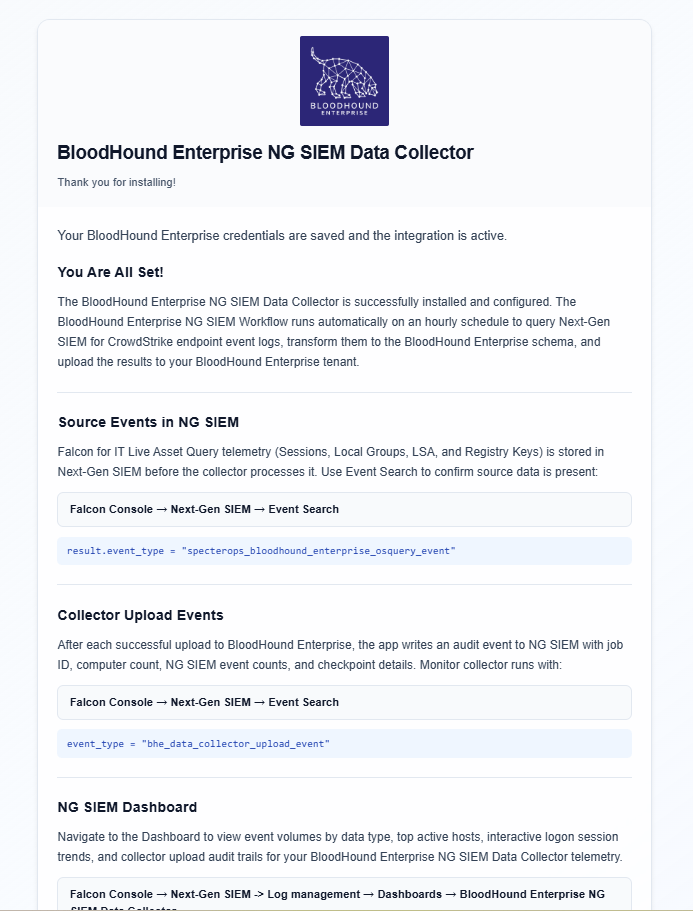

4. Review the installation success page

   After the credentials are saved successfully, click Next to open the Installation Success page.

   Use this page to review the integration status, data collection schedules, and verification steps.



   After installation and configuration are complete, the BloodHound Enterprise NG SIEM Workflow runs automatically every hour.

   The workflow retrieves CrowdStrike endpoint event logs from Next-Gen SIEM, transforms them to the BloodHound Enterprise schema, and uploads the data to your BloodHound Enterprise tenant.

Configure queries

Before the Foundry workflow can upload data to BloodHound Enterprise, the required Windows endpoint telemetry must exist in Falcon Next-Gen SIEM.

This section shows you how to save and schedule the required queries in the CrowdStrike Falcon console so your target Windows hosts continuously send data to Next-Gen SIEM.

Required queries

Use the following four queries when you configure collection in CrowdStrike Falcon. Copy, save, and schedule each query separately.

Sessions

SELECT
  'bloodhound_enterprise_windows_endpoint_osquery_result' AS event_type,
  'session' AS data_type,
  logon_id,
  user,
  logon_domain,
  logon_type,
  logon_time
FROM logon_sessions;

Local groups

SELECT
  'bloodhound_enterprise_windows_endpoint_osquery_result' AS event_type,
  'local_groups' AS data_type,
  g.groupname,
  u.username
FROM groups g
JOIN user_groups ug ON g.gid = ug.gid
JOIN users u ON ug.uid = u.uid;

User rights assignment

SELECT
  'bloodhound_enterprise_windows_endpoint_osquery_result' AS event_type,
  'user_rights_assignment' AS data_type,
  g.groupname,
  u.username
FROM groups g
JOIN user_groups ug ON g.gid = ug.gid
JOIN users u ON ug.uid = u.uid
WHERE g.groupname = 'Remote Desktop Users'
  OR g.groupname = 'Administrators';

Registry key

SELECT
  'bloodhound_enterprise_windows_endpoint_osquery_result' AS event_type,
  'registry_key' AS data_type,
  name,
  type,
  data
FROM registry
WHERE path IN (
  'HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\MSV1_0\ClientAllowedNTLMServers',
  'HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\MSV1_0\NtlmMinClientSec',
  'HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\MSV1_0\NtlmMinServerSec',
  'HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\MSV1_0\RestrictReceivingNTLMTraffic',
  'HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\MSV1_0\RestrictSendingNTLMTraffic'
);

1. Open live query in FFIT

   1. Log in to CrowdStrike Falcon.

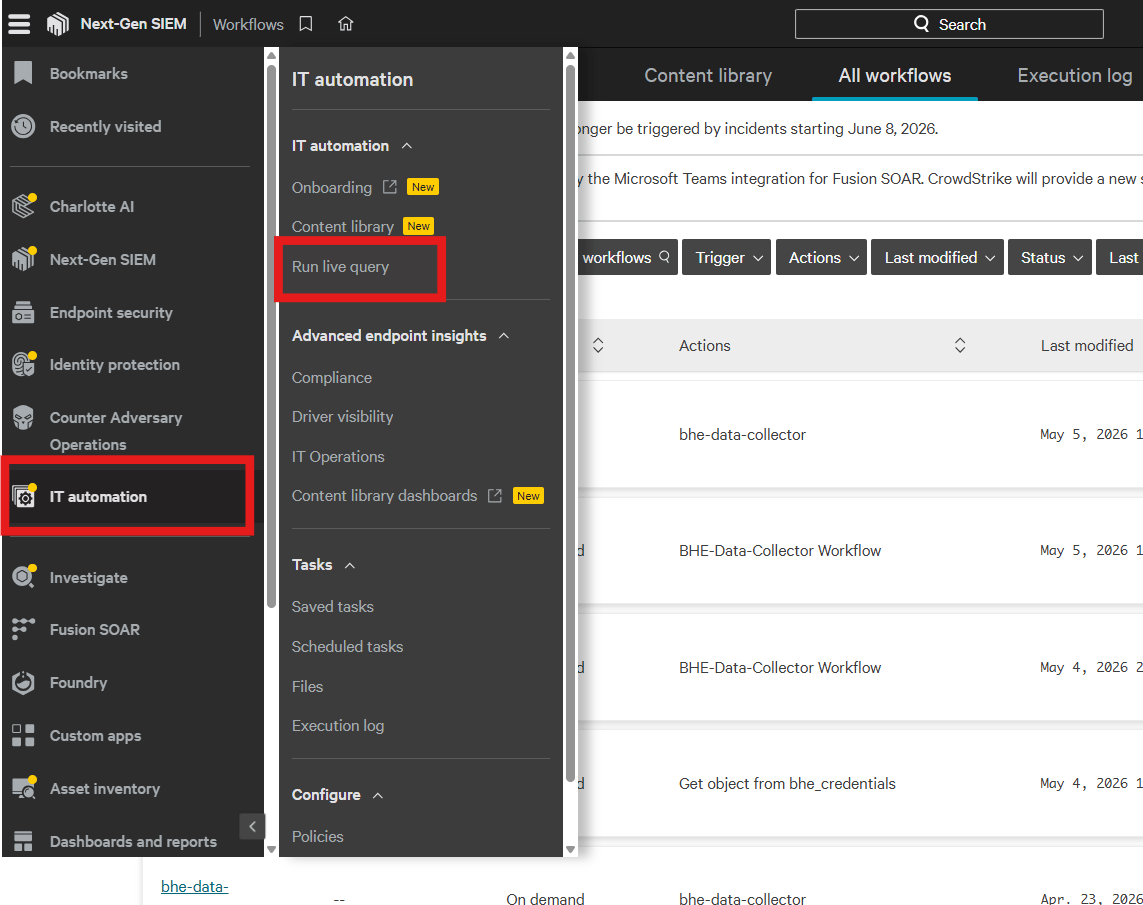

   2. Click IT Automation > Run live query.


2. Filter to the target host group

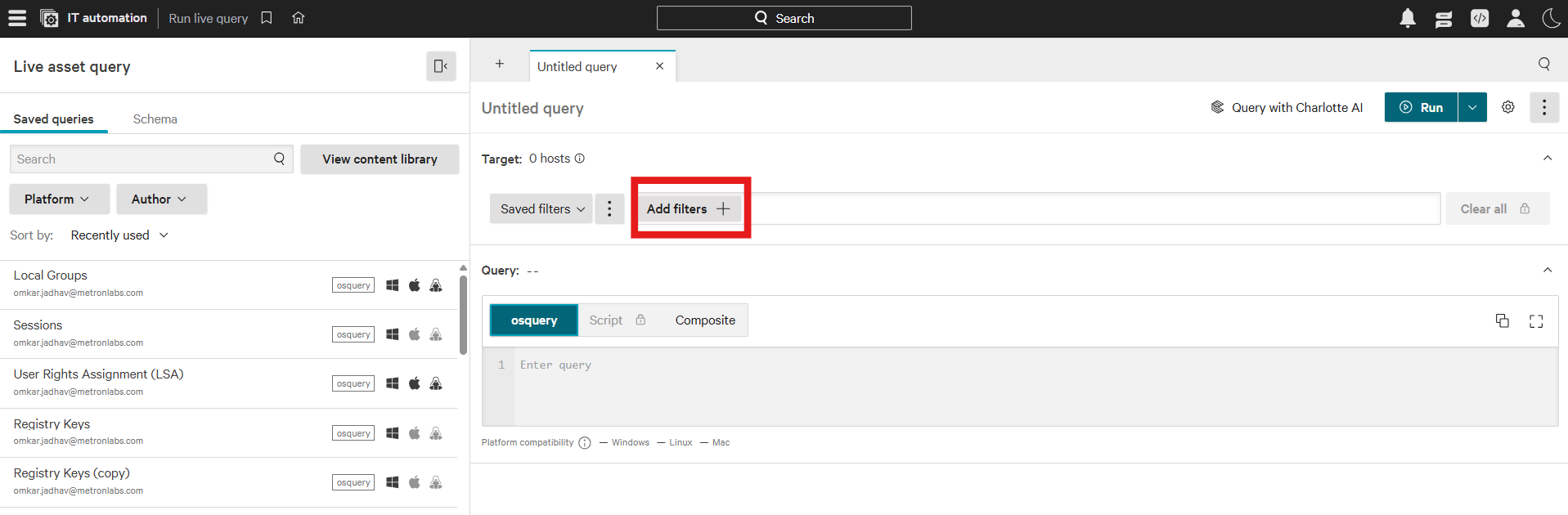

   1. Open a new tab and click Add Filters.



   2. Set the filter key to Host Group.

   3. Select the Falcon host group that contains the Windows devices you want to query.

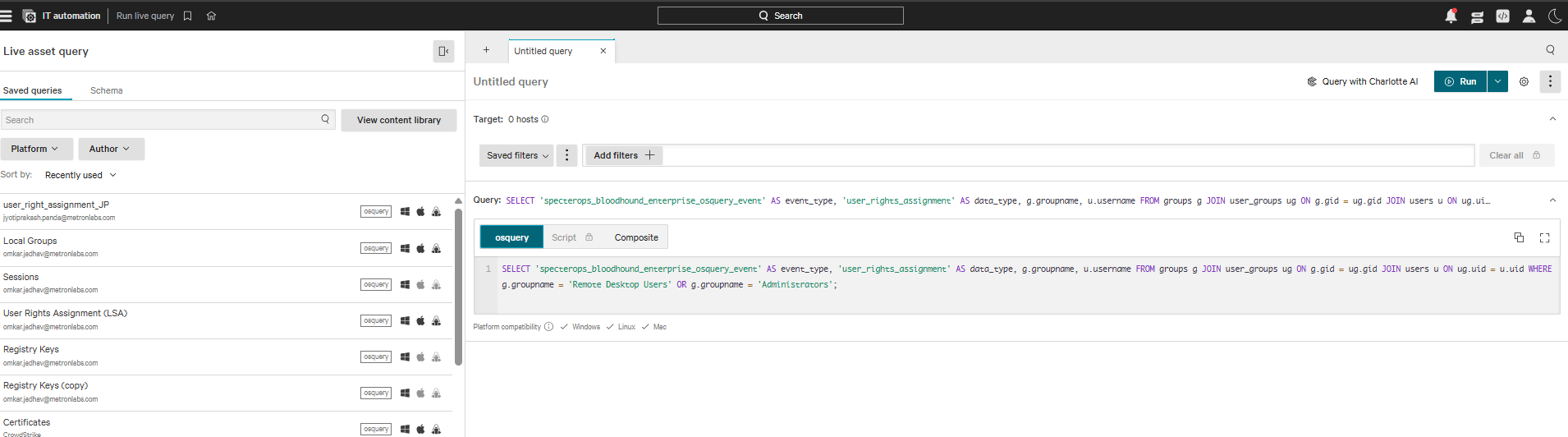

3. Create the query

   You must configure each query individually.

   1. In the Required queries tabs above, select a query.

   2. Copy the full query text.

   3. Paste the query into the CrowdStrike query input.


4. Save the query

   1. Click the ellipsis (three-dot) menu.

   2. Click Save As.

   3. Enter a name for the query and click Save.

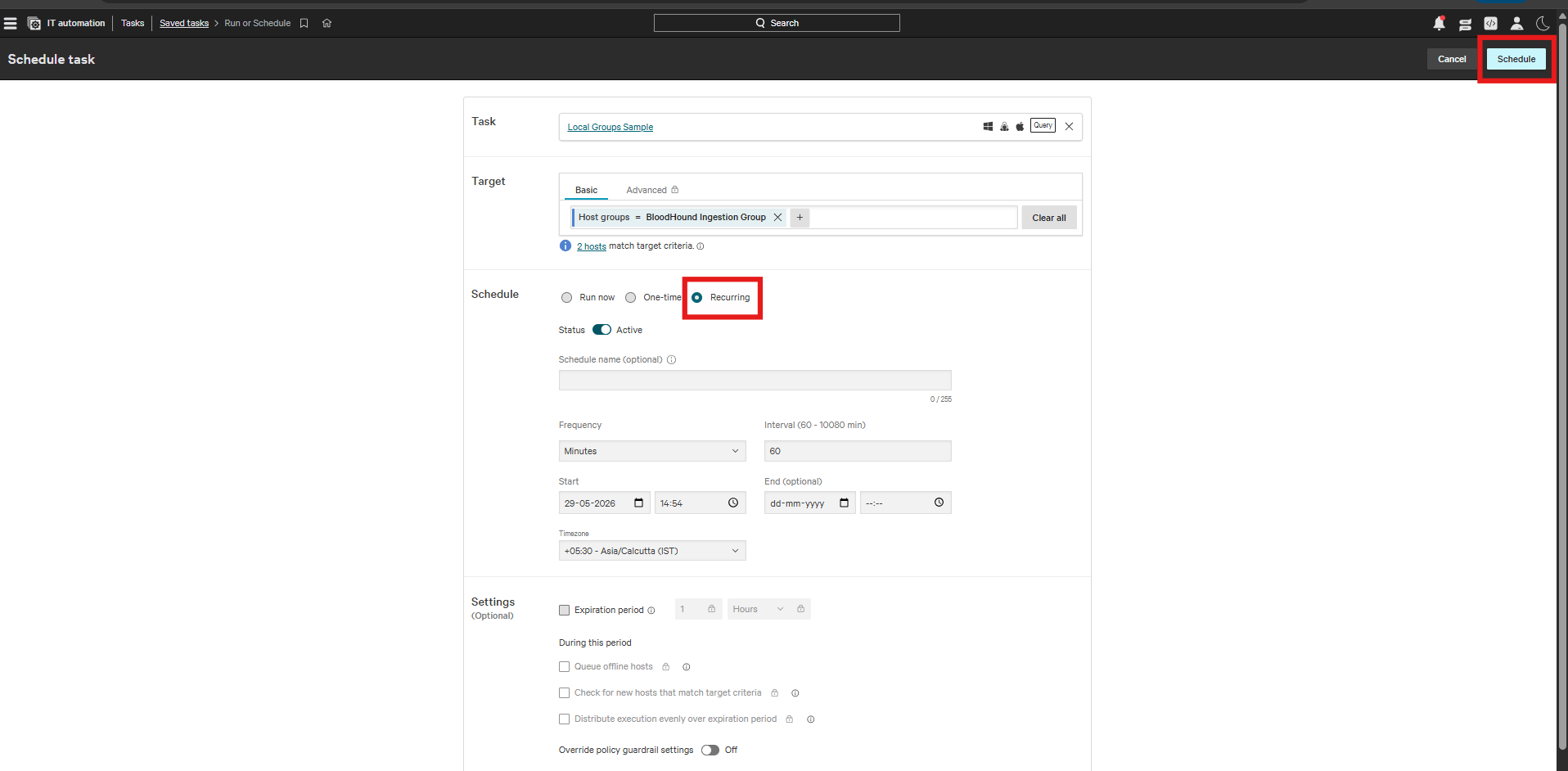

5. Schedule the query

   1. Open the dropdownmenu next to Run and click Schedule.

   2. Select the Recurring option.

   3. Set the frequency unit to Minutes and the interval to 60.

   4. Click Schedule.


6. Repeat for all required queries

   Return to the Required queries tabs and repeat the copy, paste, save, and schedule steps for all required queries.

7. Run the saved queries

   1. Confirm that the target hosts are online.

   2. Run the saved queries individually.

   3. Review the results pane to confirm that each query returns data.

Verify query results

Confirm that CrowdStrike routes the query results into Falcon Next-Gen SIEM before you run the BloodHound Enterprise workflow.

1. Open Event Search

   1. Log in to CrowdStrike Falcon.

   2. Go to Next-Gen SIEM > Log management > Event Search.

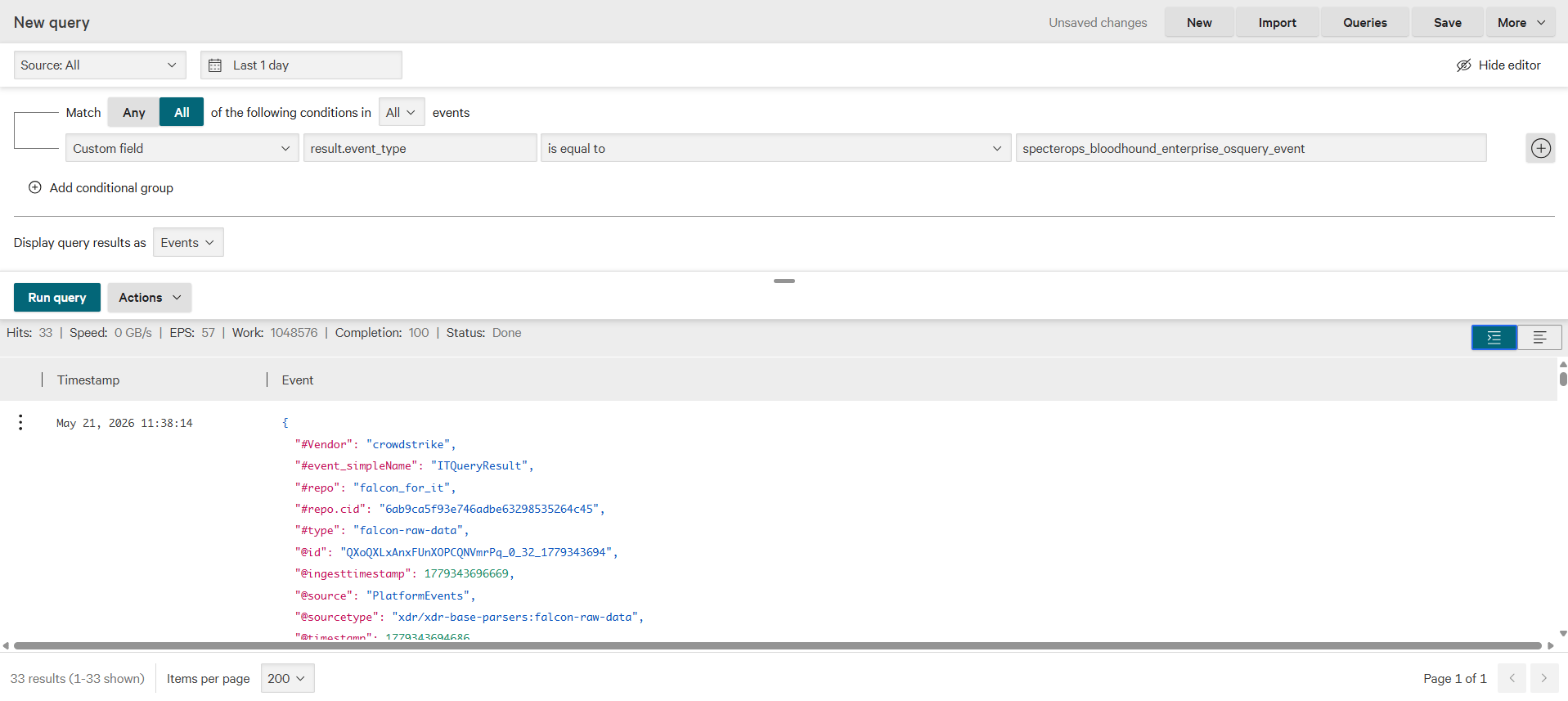

2. Filter for query telemetry

   Apply a custom filter with the following values:

   Field	Value
   Field	result.event_type
   Operator	is equal to
   Value	bloodhound_enterprise_windows_endpoint_osquery_result

3. Confirm that events are present

   Confirm that matching events appear in the search results.

   These events show that the required endpoint telemetry is available for the Foundry workflow to retrieve and upload to BloodHound Enterprise in real time.



Next steps

After verifying the query results, you can run the workflow and verify ingestion in BloodHound Enterprise.
