Monitor Data Collection

Learn how to interpret the status of collector jobs and file uploads.

Monitor collection activity and processing status to confirm uploads, understand analysis timing, and troubleshoot failures. The status concepts in this guide apply to both collector client jobs on the Finished Jobs Log page and manual uploads on the File Ingest page.

BloodHound Enterprise uses separate status indicators for tenants and jobs. These statuses operate independently and are not directly synchronized. This means you may observe scenarios where job status and tenant status appear out of sync, which is expected behavior.

• Tenant status reflects datapipe ingestion and analysis progress. The datapipe performs its own processing and reflects status independent of job status.
• Job status reflects the collector client and file ingest workflows. Jobs notify the datapipe when certain actions are complete.

Tenant Status

Tenant status (also known as datapipe status) displays in the top-right corner of the BloodHound Enterprise user interface. This status reflects the current state of data processing for your tenant.

Status	Description
Idle	The tenant is waiting for new data.
Ingesting	Data is actively being ingested from one or more collection jobs or file uploads.
Analyzing	Analysis is actively running on ingested data.
Pruning	Analysis is almost complete; stale objects, edges, and disconnected nodes are being removed based on data reconciliation settings.
Purging	Data is actively being deleted from the database (for example, you used the Database Management page to delete data).

Job Status

The following statuses apply to both the Finished Jobs Log and File Ingest pages.

Status	Description
Ready	Job is queued and waiting to start.
Running	Job is actively executing data collection or file processing.
Complete	Job finished successfully; all data has been ingested and analyzed.
Partially Completed	Job finished with some data processed successfully, but one or more files or operations encountered issues. Check the job details for specific warnings.
Canceled	Job was manually canceled before completion.
Timed Out	Job exceeded the maximum allowed execution time and was terminated.
Failed	Job encountered an error and could not complete. Check the job details for specific error messages.
Ingesting	Data is actively being written to the database.
Analyzing	Data collection is complete; awaiting completion of analysis.
Invalid	Data failed validation (for example, schema errors, corrupted files, or unsupported formats).

The following state diagram illustrates the possible transitions between job statuses:

Finished Jobs Log

Data collection clients log completed jobs to the Finished Jobs Log, which provides details about all collection activities that a client performs. This log is essential for monitoring and troubleshooting data collection jobs.

The Finished Jobs Log page provides a detailed log of each collection job, including:

Field	Value
ID	A unique identifier for the client collection job
Client	The client that initiated the collection job
Status	The status of the collection job (for example, complete, failed)
Message	A brief message providing additional context about the collection job
Start Time	The time when the collection job started
Duration	The time taken to process the collection job
Data Collected	The type of data that the client is configured to collect, see SharpHound Data and Permissions and AzureHound Data and Permissions

For clients on scheduled collection, jobs can display an Analyzing status while the tenant status remains Idle. When the scheduled collection time arrives, the tenant status changes to Ingesting, and analysis begins automatically after the collection completes successfully.

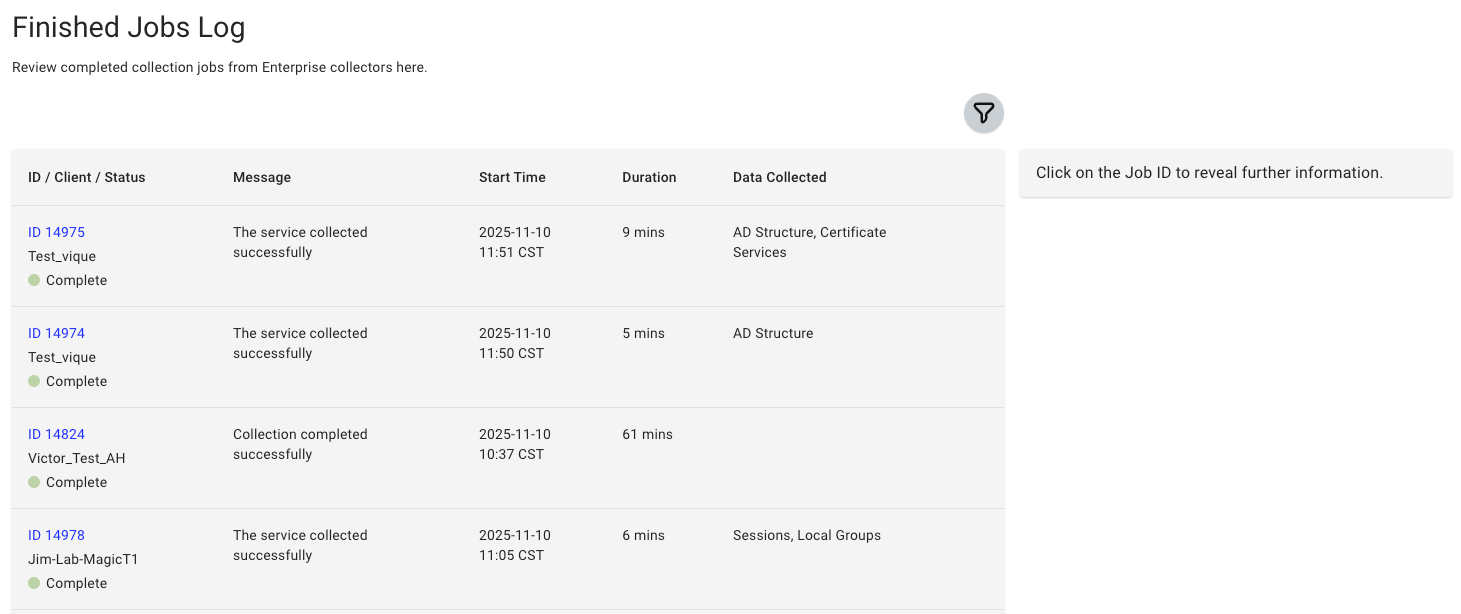

1. View the Finished Jobs Log

   In the left menu, click Administration > Finished Jobs Log.

2. Open the Details panel

   Click the specific job ID in the table to open the Details panel.

   You can also click the icon to filter job IDs by status, data collected, data range, and client.
3. Review the job details

   In the Details panel, review the job details for the selected ID. Look for any errors or warnings that may indicate issues during the collection process.

   The Details panel displays the following information for each job ID:

   Field	Description
   Job ID	A unique identifier for the client collection operation
   Client Name	The name of the client that performed the collection
   Domains attempted	The number of domains that were attempted to be collected
   Domain Controller	The domain controller used for collection
   OUs	The organizational units (OUs) that were collected
   Domains	The domains that were collected, including the number of objects collected from each domain and status messages (if available)



File Ingest

When you perform an ad-hoc data collection by uploading a SharpHound output .zip file, ingestion process details are logged on the File Ingest page.

You can use this page to monitor ingestion and ensure successful data processing. It shows the status of each file ingest operation, which can be helpful for viewing data upload history or troubleshooting data ingestion issues.

The File Ingest page provides a detailed log of each ingestion attempt, including:

Field	Description
ID	A unique identifier for the file ingest operation
User	The user who initiated the file ingest operation
Status	The current status of the file ingest operation (for example, complete, failed)
Message	A brief message providing additional context about the file ingest operation
Start Time	The time when the file ingest was initiated
Duration	The time taken to process the file ingest operation
File Information	Details about the ingested file(s), such as file count and file name(s)

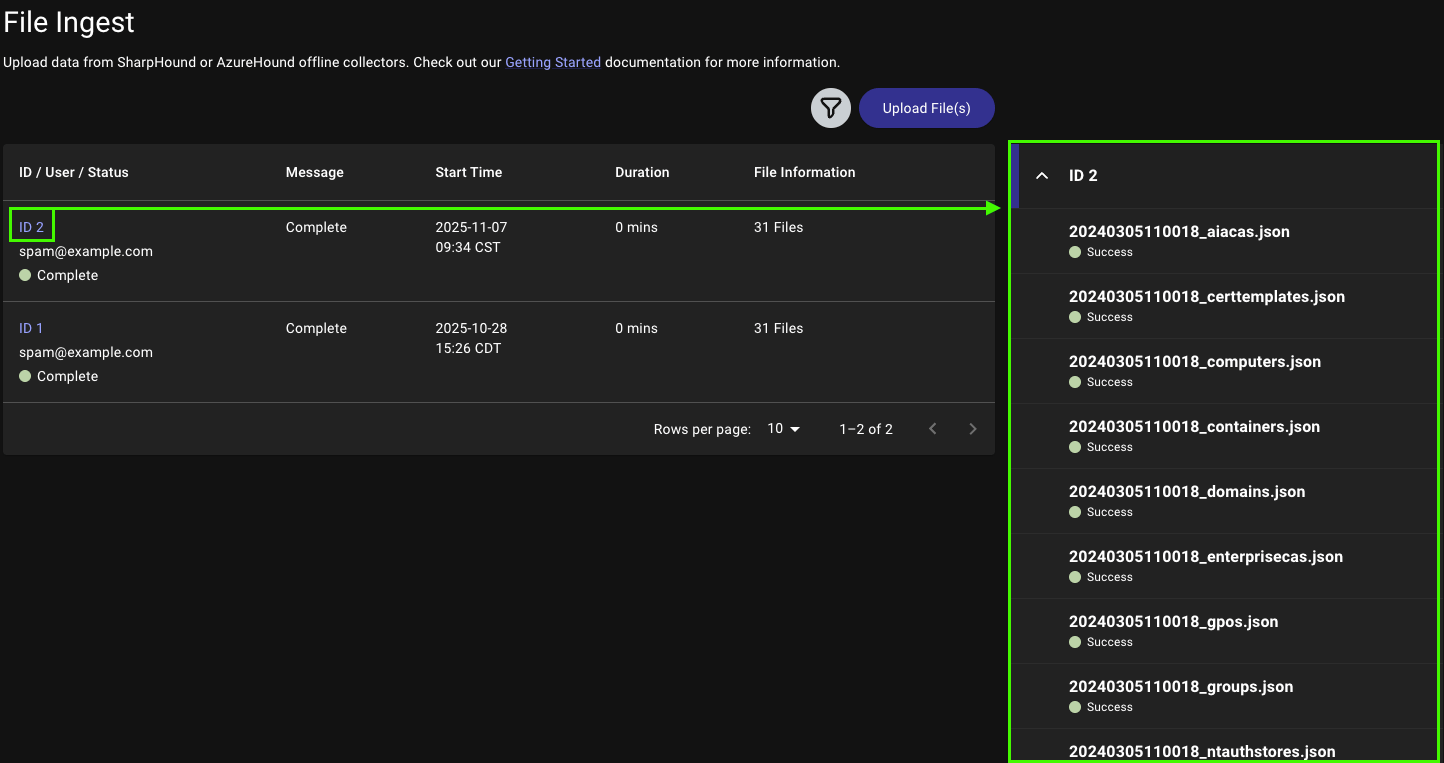

1. View File Ingest logs

   In the left menu, click Administration > File Ingest.

2. Open the Details panel

   Click the specific file ingest ID in the table to open the Details panel.

   You can also click the icon to filter ingest IDs by status, data range, and user.


3. Review the log entries

   In the Details panel, review the log entries for the selected ID. Look for any errors or warnings that may indicate issues during the ingestion process.

   If a file failed to ingest due to format issues or data corruption, the log provides specific error messages to help you diagnose the problem.

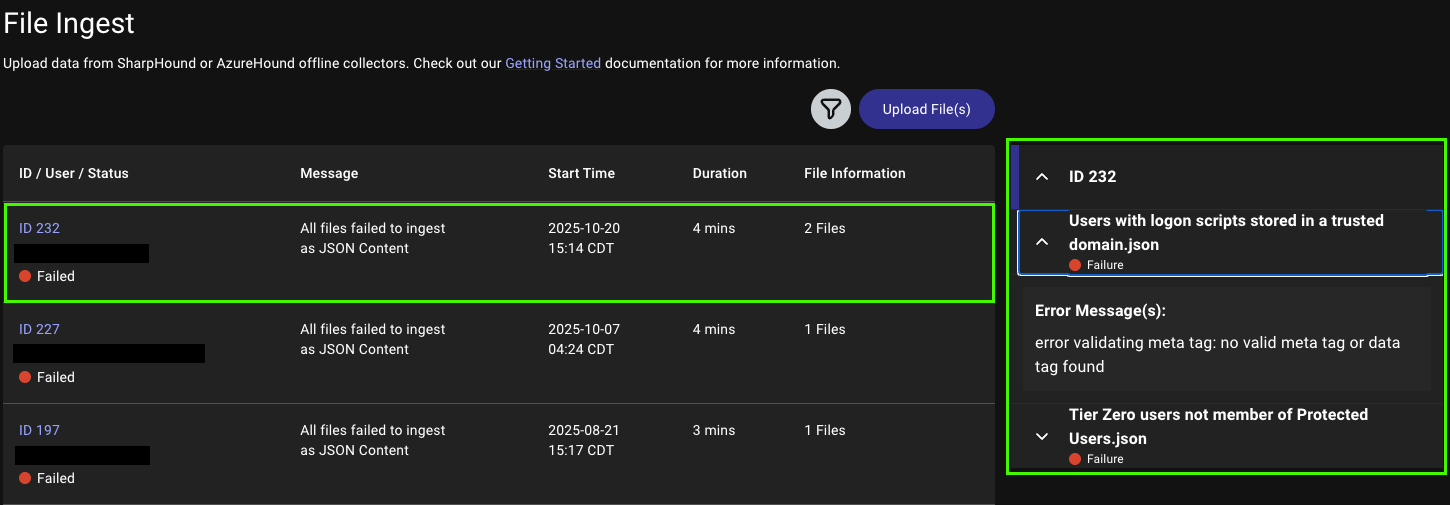

   For example, the following log indicates a failed ingestion due to a schema validation error:
